Model
|

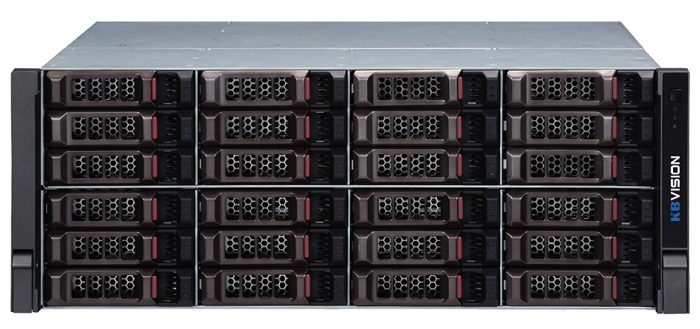

KH-ST512sR
|
|
System
|
|
Controller
|
Single Controller
|
|
Memory
|
8G Standard, up to 16G
|
|
SAS Interface
|
2 SAS interfaces
|
|
1000Mbps Ethernet port
|
1 management port, 4 data port
|
|
Expansion
|
4-1000Mbps Ethernet port or 2-10000Mbps Ethernet port
|
|
USB
|
1 USB 3.0
|
|
Multiplex Interface
|
1 USB 2.0 and eSATA multiplex interface
|
|
Serial
|
1 RS232, 1 RS485
|
|
Alarm
|
4/4 channel In/Out
|
|
HDD Compatibility
|
Support 1TB/ 2TB/ 3TB/ 4TB/ 6TB HDD, Support mixed SAS and SATA HDDs, support SSD & 2.5 inch HDD
|
|
Power Rredundant
|
Dual power supply redundant
|
|
Main Processor
|
64-bit high-performance multi-core processors
|
|
Operating System
|
Embedded LINUX
|
|
User Interface
|
WEB
|
|
IPSAN Mode
|
Support IPSAN direct storage
|
|
IPSAN Function
|
Support logic volume dynamic online expansion
|
|
Video Stream Mode
|
Support RTP/ RTCP/ RTSP/ UDP/ HTTP/ NTP/ SNMP/ iSCSI/ SMB/ NFS/ FTP protocol
|
|
Network Protocol
|
Support RTP/ RTCP/ RTSP/ UDP/ HTTP/ NTP/ SNMP/ iSCSI/ SMB/ NFS/ FTP protocol
|
|
Streaming media protocol
|
Support access protocol such as Onvif, GB28181
|
|
Frame extracting
|
Support access protocol such as Onvif, GB28181
|
|
Frame extracting storage
|
Support frame extracting storage, time and frame extracting rate can be settled
|
|
Cluster service
|
Support N+M cluster
|
|
Performance index
|
Up to 512ch(1024Mbps) front-end access, storage, transmit, 64ch (128Mbps）network playback
|
|
Hard disk
|
24 HDDs, expandable up to 240 HDDs
|
|
HDD install
|
Independent HDD holder
|
|
HDD Hot Standby
|
Support hot-swappable, on-line replacement
|
|
HDD Using Mode
|
Single HDD, RAID 0, 1, 5, 6, 10, 50, 60, JBOD, Hot-Spare Hot Standby
|
|
HDD Management
|
Non-working HDD sleep, in favor of heat dissipation and power consumption reduction, prolong life-span of HDD
|
|
HDD Processing
|
Support HDD bad tracks mapping, prolong life-span of HDD
|
|
HDD status inspection
|
Support HDD preview before use, periodic inspection during use
|
|
One-click RAID
|
RAID Support one-click set RAID immediately
|
|
RAID set-and-play
|
RAID can be used directly after settled
|
|
RAID Reset
|
Support adjust RAID reset speed dynamically, ensure system load balance
|
|
RAID write synchronous
|
Support RAID write synchronous, ensure to data safety
|
|
Video Playback
|
Support WEB-client video playbacksupport search by second, adjustable playback speed
|
|
Port Property
|
Support Ethernet-port binding or mode such as load balance, fault-tolerant
|
|
Power Supply
|
100 ~ 240V, 47~63Hz, support hot-swap
|
|
Fan
|
12VDC, 1.5A, flabellum diameter: 80mm, support hot-swap
|
|
Power Consumption
|
200-400W (include HDD)
|
|
Working Temperature
|
0ºC ~ 40ºC
|
|
Working Humidity
|
10% ~ 80% (non-condensation)
|
|
Storage Temperature
|
-20ºC ~ 70ºC
|
|
Storage Humidity
|
5% ~ 90% (non-condensation)
|
|
Working Elevation
|
-60m ~ 5000m
|
|
Chassis
|
Hot-dip galvanized steel sheet (1.2mm thickened) High-precise aluminum alloy slide Self-patent drawer-type HDD rack
|
|
Dimension
|
494 x 483 x 175 (with lug)
|
|
Weight
|
27kg (exclude external packing, exclude HDD)
|
