| Model |

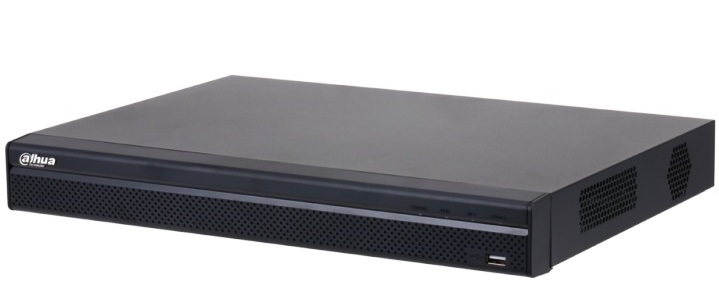

DHI-NVR4216-4KS2/L |
| System |
| Main Processor |
Industrial-grade embedded processor |
| Operating System |
Embedded LINUX |
| Video |
| Access Channel |
16 Channel |
| Network Bandwidth |
128Mbps for access, 128 Mbps for storage and 64Mbps for forwarding |
| Resolution |
8MP/5MP/4MP/3MP/1080P/720P/D1/CIF |
| Decoding Capability |
16ch@720P(30FPS) |
| Video Output |
1 VGA/1 HDMI simultaneous video output, maximum resolution 4K |
| Multi-screen Display |
1/4/8/9/16 |
| Third Party Camera Access |
ONVIF, RTSP |
| Compression |
| Video |
Smart H.265+/H.265/Smart H.264+/H.264 |
| Audio |
G.711A/G.711U/PCM/G726 |
| Network |
| Network Protocol |
HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, P2P |
| Mobile Phone Access |
iDMSS (iOS)/gDMSS (Android) |
| Access Standard |
ONVIF (profile S), CGI, SDK |
| Browser |
Chrome, IE9 or above, Firefox |
| Record Playback |
| Multi-channel Playback |
Up to 16 channels playback |
| Record Mode |
Priority of record mode: Manual recording > alarm recording > motion detection recording > timed recording |
| Backup |
USB device |
| Alarm |
| General Alarm |
Motion detection, privacy masking, video loss, IPC alarm |
| Anomaly Alarm |
Front-end device going offline, storage error, full storage, IP conflict, MAC conflict, login lock, network security anomaly |
| Alarm Linkage |
Video recording, snapshot, log, preset point, tour |
| External Port |
| HDD |
2 SATA ports, up to 8 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
| USB |
1 front USB 2.0 port, 1 rear USB 2.0 port |
| HDMI |
1 |
| VGA |
1 |
| RCA Input/Output |
1/1 |
| Alarm |
4 alarm input ports, 2 alarm output ports |
| Network |
1 RJ45 port (10/100/1000 Mbps), 16 RJ45 ports with PoE power supply (10/100 Mbps) |
| Others |
| Power Supply |
100V–240V, 47Hz–63HZ, 3.5A |
| Power Consumption |
Total output of NVR is ≤ 10W (without HDD)
Total output power of PoE is 117W |
| Dimensions |
375 × 320 × 48.2 mm |
| Weight |
2.63kg |
