| Model |

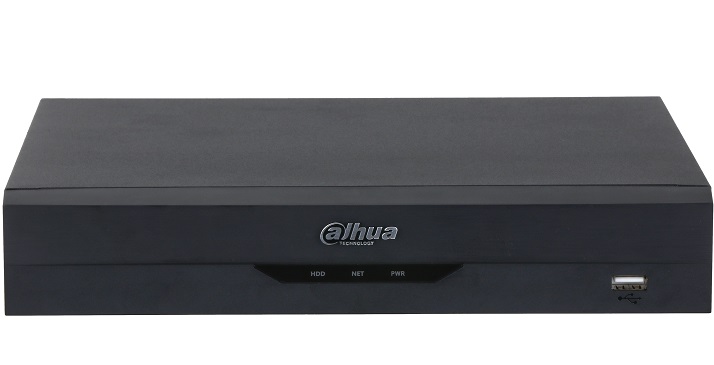

XVR4116HS-I |
|
|
| Main Processor |
Embedded processor |
| Operating System |
Embedded linux |
| SMD Plus |
| Performance |
8 channels |
| AI Search |
Search by target classification (Human, Vehicle) |
| Video and Audio |
| Analog Camera Input |
16 channels, BNC |
| HDCVI Camera |
1080p@ 25/30 fps, 720p@ 50/60 fps, 720p@ 25/30 fps |
| AHD Camera |
1080p@ 25/30 fps, 720p@ 25/30 fps |
| TVI Camera |
1080p@ 25/30 fps, 720p@25/30 fps |
| CVBS Camera |
PAL/NTSC |
| IP Camera Input |
16+2 channels: each channel up to 6MP |
| Audio In/Out |
1/1, RCA |
| Two-way Talk |
Reuse audio in/out, RCA |
| Recording |
| Video Compression |
AI Coding/H.265+/H.265/H.264+/H.264 |
| Resolution |
1080N; 720p; 960H; D1; CIF |
| Record Rate |
Main Stream: the 1st channel 1080N/720p (1 fps–25/30 fps), others 1080N/720p (1 fps–15 fps); 960H/D1/CIF (1 fps–25/30 fps)
Sub steram: CIF (1 fps–7 fps) |
| Video Bit Rate |
32 kbps–4096 kbps per channel |
| Record Mode |
Manual; Schedule (General, Continuous); MD (Video detection: Motion Detection, Video Loss, Tampering); Alarm; Stop |
| Record Interval |
1 min–60 min (default: 60 min), Pre-record: 1 sec–30 sec, Post-record: 10 sec–300 sec |
| Audio Compression |
G.711A; G.711U; PCM |
| Audio Sample Rate |
8 KHz, 16 bit per channel |
| Audio Bit Rate |
64 kbps per channel |
| Display |
| Interface |
1 HDMI; 1 VGA |
| Resolution |
1920 × 1080; 1280 × 1024; 1280 × 720 |
| Multi-screen Display |
When IP extension mode not enabled: 1/4/8/9/16
When IP extension mode enabled: 1/4/8/9/16 |
| OSD |
Camera title; Time; Video loss; Camera lock; Motion detection; Recording |
| Network |
| Interface |
1 RJ-45 Port (100 MB) |
|
|
HTTP; HTTPS; TCP/IP; IPv4/IPv6; Wi-Fi; 3G/4G; UPnP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; P2P; IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Max. User Access |
128 users |
| Smart Phone |
iPhone; iPad; Android |
| Interoperability |
ONVIF 16.12, CGI Conformant |
| Video Detection |
| Trigger Events |
Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection |
Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Playback and Backup |
| Playback |
1/4/9/16 |
| Search Mode |
Time/Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function |
Play; Pause; Stop; Rewind; Fast play; Slow Play; Next File, Previous File; Next Camera; Previous Camera; Full Screen; Repeat; Shuffle; Backup Selection; Digital Zoom |
| Backup Mode |
USB Device/Network |
| Storage |
| Internal HDD |
1 SATA port, up to 10 TB capacity |
| Auxiliary Interface |
| USB |
2 USB ports (USB 2.0) |
| RS485 |
1 port, for PTZ control |
| Electrical |
|
| Power Supply |
DC 12V/2A |
| Power Consumption (without HDD) |
< 10W |
| Dimensions |
Compact 1U, 260.0 mm × 237.9 mm × 47.6 mm |
| Weight |
1.042 kg |
