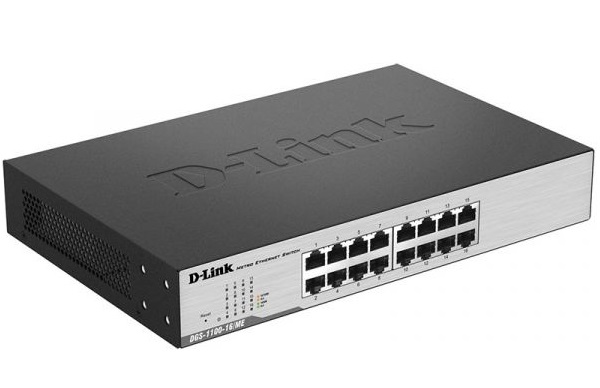

16-Port 1000Base-T Managed L2 Metro Ethernet Switch D-Link DGS-1100-16/ME

16-Port 1000Base-T Managed L2 Metro Ethernet Switch D-Link DGS-1100-16/ME Size - 11-inch Desktop/Rackmount Size, 1U Height Number of Ports - 16 10/100/1000 Mbps Port Functions - IEEE 802.3 compliant - IEEE 802.3u compliant - IEEE 802.3ab compliance - IEEE802.3af/802.3at (only for DGS-1100-24P/ME, ports 1 through 12) - Supports half/full-duplex operation (full/half at 10/100 Mbps, full at 1000 Mbps) - Auto-negotiation - Auto MDI/MDIX - IEEE 802.3x Flow Control supports Full-Duplex mode - IEEE 802.3az compliant Performance - Switching Capacity: 32 Gbps - Maximum Forwarding Rate: 23.81 Mpps - MAC Address Table Size: 8K Entries - Packet Buffer: 512 Kbits - Flash Memory: 8 Mbyte LEDs - Power (per device) - Link/Activity/Speed (per port) Power Consumption - Maximum Power Consumption: 9.31 watts - Standby Mode: 9.31 watts Software Features VLAN - Port-based VLAN - 802.1Q Tagged VLAN - Auto Surveillance VLAN - Voice VLAN - Asymmetric VLAN - VLAN Group - Supports 128 static VLAN groups - Max. 4094 VIDs - Multicast VLAN L2 Features - Flow Control - 802.3x Flow Control - HOL Blocking Prevention - Jumbo Frames up to 9216 Bytes - IGMP Snooping - IGMP v1/v2/v3 awareness Snooping - Supports 64 Groups - IGMP Snooping Querier - MLD Snooping - MLD v1/v2 awareness snooping - Supports 64 groups - MLD snooping querier - 802.3ad Link Aggregation: - Loopback Detection - Cable Diagnostics - LLDP - Port Mirroring - One-to-One - Many-to-One - Statistics - Tx Ok - Tx Error - Rx Ok - Rx Error - Spanning Tree Protocol - 802.1D STP - 802.1w RSTP Quality of Service (QoS) - 802.1p Quality of Service - 4 queues per port - Queue Handling - Strict - Weighted Round Robin (WRR) - Port-based Bandwidth Control (Rate Limiting) - Ingress: 8Kbps, Egress: 64Kbps Security - D-Link Safeguard - Traffic Segmentation - DoS Attack Prevention - Broadcast/Multicast/Unknown Unicast Storm Control Management - Command line interface (via Telnet) - D-Link Network Assistant Utility Green Technology - Power Saving by - Link Status - LED Shut-Off - Port Shut-Off - System Hibernation - Compliant with IEEE 802.3az Energy Efficient Ethernet
