| Model |

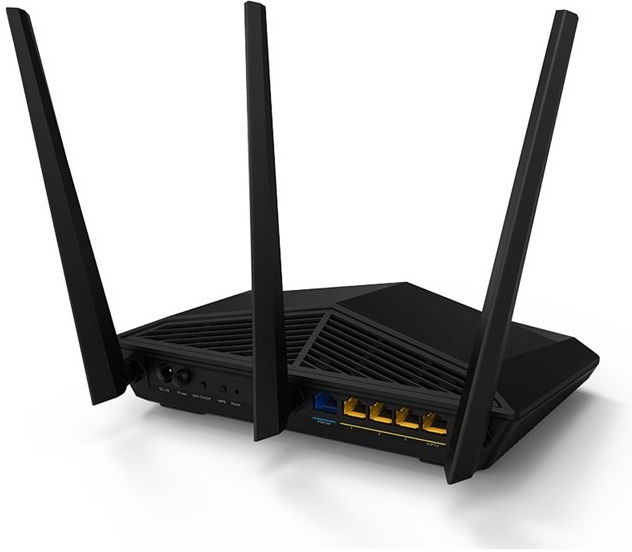

AC18 |
| Standard and Protocol |
IEEE802.3, IEEE802.3u, IEEE802.3ab |
| Ports |
1 * 10/100 / 1000Mbps WAN port
4 * 10/100 / 1000Mbps LAN ports
1 * USB3.0 port |
| Antenna |
3 * 3dBi external dual band antennas |
| Button |
1* Power On/ Off button, 1* WiFi On/Off, 1* Reset button, 1* WPS button |
| Power |
Input: 100-240V, 50/ 60Hz, 0.9A
Output: 12VDC, 2.5A |
| Dimensions |
261 x 168 x 65 mm (LxWxH) |
| Weight |
640g |
| LED |
1 * power, 1 * Internet, LAN, 1 * 2.4G, 1 * 5G, 1 * WPS, 1 * USB |
| Wireless standard |
IEEE 802.11ac/a/n 5GHz
IEEE 802.11b/g/n 2.4GHz |
| Speed |
5GHz: Up to 1300Mbps
2.4GHz: Up to 600Mbps, support Turbo-QAM |
| Frequency |
Simultaneous dual band 2.4 & 5GHz |
| Wireless security |
WPA-PSK / WPA2-PSK, WPA / WPA2
Wireless Security: Enable / Disable
WPS (WiFi Protected Set-up) fast encryption |
| Features |
SSID Broadcast: Enable/ Disable
Transmission Power: high, medium, low
Beamforming |
| Internet Connection Type |
PPPoE, Dynamic IP, Static IP, PPPoE (Russia), PPTP (Russia), L2TP (Russia) |
| Operation mode |
Wireless Router Mode
Universal Repeater Mode
WISP Mode |
| DHCP |
DHCP Server
DHCP Client List
DHCP Reservation |
| Virtual Server |
Port Forwaring
DMZ Host
UPnP |
| Security |
Client Filter
Parental Control (support black list and white list)
Remote Web Management |
| Firewall |
Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet |
| DDNS |
Support DynDNS, No-ip, 3322.org, Oray.com, 88ip |
| USB |
Support Samba (Storage) / FTP Server / Printer Server / DLNA / Media Server |
| VPN |
IPsec pass through
PPTP pass through
L2TP pass through
PPTP server
PPTP client
L2TP client |
| Functions |
Smart WiFi Schedule
Sleeping Mode
Smart LED on / off
Tenda App |
| Other functions |
Bandwidth Control
Guest Network
IPTV
MAC Clone
Static Routing
System Log
Backup & Restore configurations
Firmware upgrade online
Firmware upgradeable via browser |
