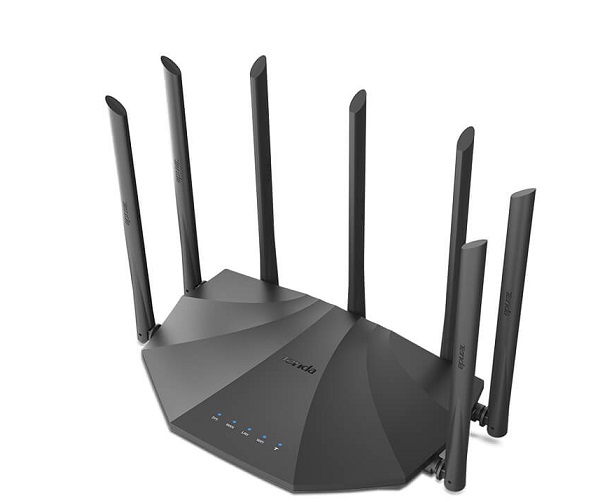

| Model |
AC23 |
| EIRP Power (Max.) |
2.400-2.4835GHz:19.86dBm (EIRP)
5.150-5.250GHz:22.96dBm (EIRP) |
| Standard&Protocol |
IEEE802.3, IEEE802.3u,IEEE802.3ab |
| Interface |
1x10/100/1000Mbps WAN port
3x10/100/1000Mbps LAN ports |
| Antenna |
7 x 6dBi external antennas |
| Button |
1 x WPS/Reset button |
| Power |
Input: AC 100-240V~50/60Hz 0.6A
Output: DC 12V1.5A |
| Dimension |
238.9 x 144.3 x 40.3 mm |
| LED indicator |
Sys x 1,WAN x 1, LAN x 1,WiFi/WPS x 1 |
| Wireless Standards |
IEEE 802.11ac wave2/a/n 5GHz
IEEE 802.11b/g/n 2.4GHz |
| Data Rate |
5GHz: Up to 1733Mbps
2.4GHz: Up to 300Mbps |
| Frequency |
Simultaneous dual band 2.4 & 5GHz |
| Transmit Power |
CE:
<20dBm(2.4G)
<23dBm(5G) |
| Basic Features |
SSID Broadcast: Enable/Disable
Transmission Power: high, medium, low
Beamforming
MU-MIMO |
| Wireless Security |
WPA-PSK/WPA2-PSK, WPA/WPA2
Wireless Security: Enable/Disable
WPS(WiFi Protected Set-up) fast encryption |
| Internet Connection Type |
PPPoE, Dynamic IP, Static IP
PPPoE(Russia), PPTP(Russia), L2TP(Russia) |
| Operating Mode |
Wireless Router Mode
Universal Repeater Mode
WISP Mode |
| DHCP Server |
DHCP Server
DHCP Client List
DHCP Reservation |
| Virtual Server |
Port Forwarding
DMZ Host
UPnP |
| Security |
Client Filter
Parental Control(support black list and white list)
Remote Web Management |
| Firewall |
Forbid UDP flood attack
Forbid TCP flood attack
Forbid flood attack
Forbid WAN PING from internet |
| DDNS |
Support DynDNS, Oray.com, 88ip |
| VPN |
IPsec pass through
PPTP pass through
L2TP pass through
PPTP server
PPTP client
L2TP client |
| Special Features |
Smart Traffic Prioritisation
PPPoE Username/password Clone
Smart WiFi Schedule
Smart Power Saving
Smart LED on/off
Tenda Cloud
Tenda App |
| Other |
Bandwidth Control
IPTV
MAC Clone
Static Routing
System Log
Backup & Restore configurations
Firmware upgrade online
Firmware upgradeable via browser
Supports IPv6 |
| Temperature |
Operating Temperature: 0℃ ~ 40℃
Storage Temperature: -40℃ ~ 70℃. |
| Humidity |
Operating Humidity:10% ~ 90% RH non-condensing
Storage Humidity: 5% ~ 90%RH non-condensing |
| Default Settings |
Default Access: tendawifi.com |
| Certification |
CE/FCC/RoHS |
