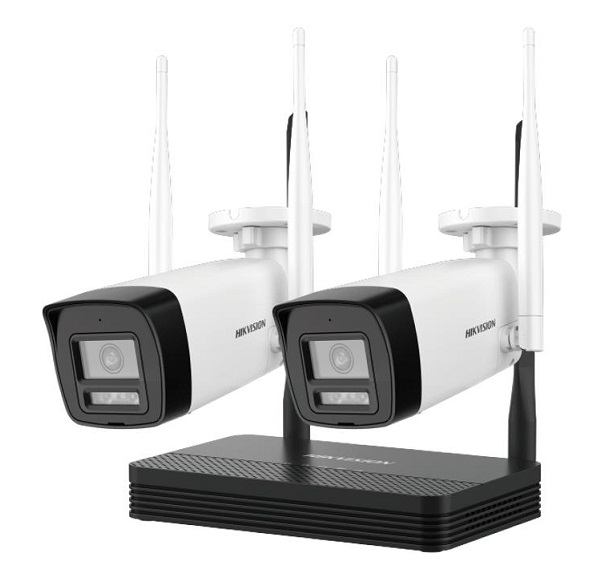

| Camera DS-2CV1023G2-LIDWFB |
| Camera |
| Image Sensor |
1/3 inch Progressive Scan CMOS |
| Max. Resolution |
1920 × 1080 |
| Min. Illumination |
Color: 0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lens |
| Lens Type |
Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV |
2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 118°
4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 92°
6 mm, horizontal FOV 49°, vertical FOV 28°, diagonal FOV 56° |
| Aperture |
F2.0 |
| Iris Type |
Fixed |
| Lens Mount |
M12 |
| Depth of Field |
2.8 mm: 0.8 m~∞
4 mm: 1.1 m~∞
6 mm: 2.3 m~∞ |
| DORI |
| DORI |
2.8 mm, D: 43 m, O: 17 m, R: 8 m, I: 4 m
4 mm, D: 59 m, O: 23 m, R: 11 m, I: 5 m
6 mm, D: 86 m, O: 34 m, R: 17 m, I: 8 m |
| Illuminator |
| Supplement Light Type |
IR, White Light |
| IR Wavelength |
850 nm |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| Video |
| Main Stream |
50 Hz: 25 fps (1920 × 1080, 1280 × 720, 768 x 432)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 768 x 432) |
| Sub-Stream |
50 Hz: 25 fps (768 × 432)
60 Hz: 30 fps (768 × 432) |
| Video Compression |
Main stream: H.265/H.264,
Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate |
32 Kbps to 8 Mbps |
| H.264 Type |
Baseline Profile, Main Profile, High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR, VBR |
| Region of Interest (ROI) |
1 fixed region for main stream |
| Audio |
| Audio Type |
Mono sound |
| Audio Compression |
G.711(ulaw)/ (AAC-LC) |
| Audio Bit Rate |
64 Kbps (G.711ulaw)/16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate |
8 kHz/16 kHz |
| Environment Noise Filtering |
Yes |
| Network |
| Security |
Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Simultaneous Live View |
Up to 6 channels |
| API |
ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK |
| Protocols |
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTCP, RTSP, NTP, IGMP, IPv4, IPv6, UDP, QoS, UPnP |
| User/Host |
Up to 32 users
3 user levels: administrator, operator, and user |
| Client |
iVMS-4200, Hik-Connect |
| Web Browser |
Local service: IE 11, Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Wi-Fi |
| Wi-Fi Protocol |
IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Frequency Range |
2.4 GHz to 2.4835 GHz |
| Channel Bandwidth |
20/40 MHz |
| Modulation |
802.11n: QPSK, BPSK, 16QAM, 64QAM,
802.11b: CCK, QPSK, BPSK,
802.11g: QPSK, BPSK, 16QAM, 64QAM |
| Transfer Rate |
11n: up to 300 Mbps |
| Image |
| Wide Dynamic Range (WDR) |
Digital WDR |
| SNR |
≥ 52 dB |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Image Enhancement |
BLC, HLC, 3D DNR |
| Image Settings |
Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Privacy Mask |
4 programmable polygon privacy masks |
| Interface |
| Built-in Microphone |
Yes |
| Reset Key |
Yes |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Event |
| Basic Event |
Motion detection (support alarm triggering by specified target types (human and vehicle)), exception |
| Linkage |
Notify surveillance center, send email, trigger recording, trigger capture, audible warning |
| General |
| Power |
12 VDC ± 25%, 0.55 A, max. 6.5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection,
*A switching adapter is included in the package. |
| Material |
Plastic |
| Dimension |
260.9 mm × 113.9 mm × 67.4 mm |
| Weight |
Approx. 310 g |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing |
| Language |
English, Ukrainian |
| General Function |
Heartbeat, anti-banding, mirror, password protection |
| Approval |
| EMC |
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014 |
| RF |
CE-RED: EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1 (BT or 2.4G); EN 300328 V2.1.1 (BT or 2.4G); EN 62311:2008 (BT or 2.4G) |
| Safety |
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment |
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006 |
| Protection |
IP66: IEC 60529-2013 |
| NVS NVS DS-7104NI-S1/W |
| Video and Audio |
| IP Video Input |
4-ch |
| Incoming Bandwidth |
20 Mbps |
| Outgoing Bandwidth |
20 Mbps |
| Decoding |
| Stream Type |
Video, Video & Audio |
| Recording Resolution |
6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
| Network |
| Network Interface |
1, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Wireless Parameter |
| Frequency Band |
2.4 GHz |
| Antenna Structure |
High gain antenna |
| Transmission Speed |
150 Mbps |
| Transmission Standard |
IEEE 802.11b/g/n/ax |
| Auxiliary Interface |
| SD Card |
32G/64G/128G/256G/512G |
| General |
| Power Supply |
12 VDC, 1 A |
| Consumption |
≤ 6 W |
| Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity |
10 to 90 % |
| Dimension (W × D × H) |
163 x 125 x 26 mm |
| Weight |
≤ 500 g |
| Others |
| RESET button |
Support |
| Power Indicator |
Solid on: Device is powered up;
Solid off: Device is powered off or power supply exception occurs;
Flickering: Device is being restored |
| Online Indicator |
Solid on: Network is connected;
Solid off: Network is disconnected or network exception occurs |
| Wi-Fi Indicator |
Solid on: Wi-Fi is initializing or there is no data transmission through Wi-Fi;
Solid off: Wi-Fi exception occurs;
Flickering slowly (on for 2 sec and off for 2 sec ): Wi-Fi is initialized and there is data
transmission through Wi-Fi |
| SD Card Indicator |
Solid on: SD card is detected;
Solid off: No SD card is detected;
Flickering: There is data transmission |
