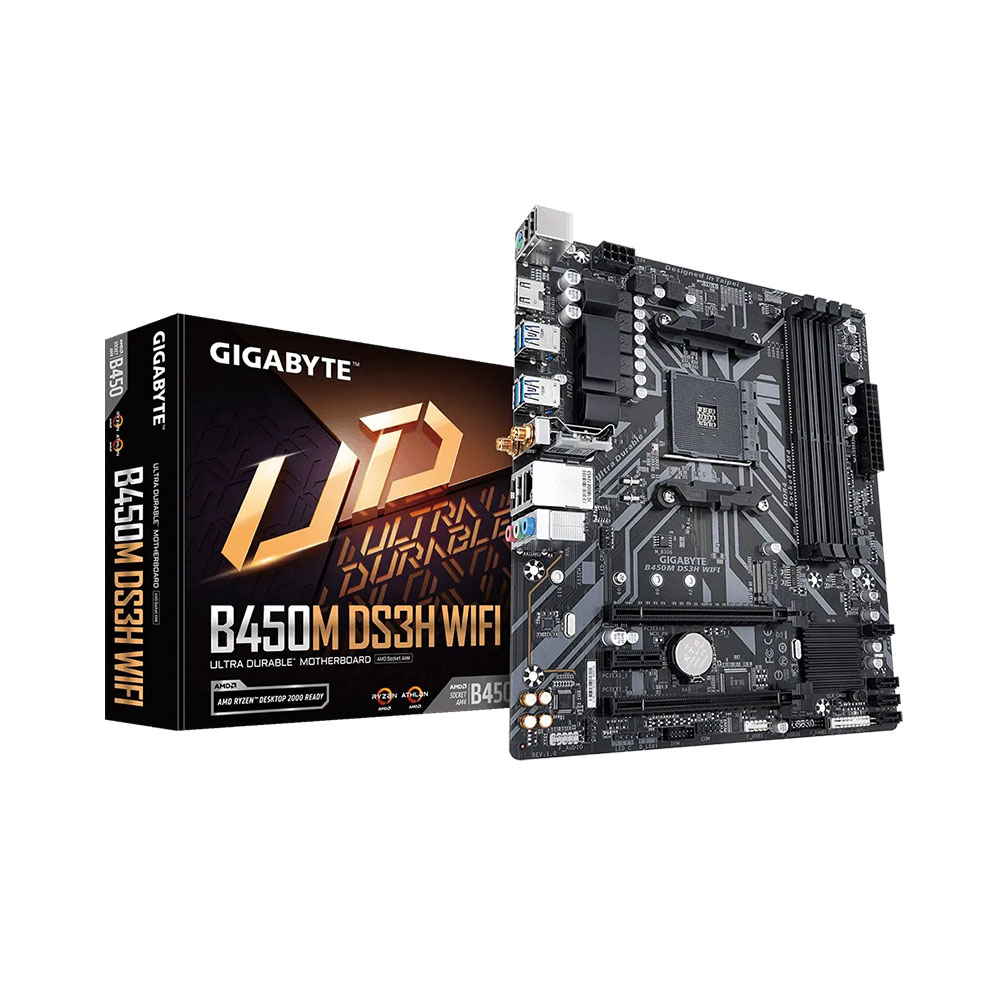

Mainboard GIGABYTE B450M DS3H WIFI

Sản phẩm

Bo mạch chủ

Tên Hãng

Model

B450M DS3H WIFI

CPU hỗ trợ

AMD

Chipset

1. AMD B450

RAM hỗ trợ

1. 4 x DDR4 DIMM sockets supporting up to 128 GB of system memory

Khe cắm mở rộng

1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
   (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
2. 1 x PCI Express x16 slot, running at x1 (PCIEX1_2)
3. 1 x PCI Express x1 slot
   (The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.)

Ổ cứng hỗ trợ

1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2* SSD support)
   * Actual support may vary by CPU.
   * Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon™ X4 APU.
2. 4 x SATA 6Gb/s connectors
3. Support for RAID 0, RAID 1, and RAID 10
   * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector.

Cổng kết nối (Phía trong)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 1 x system fan header
5. 1 x M.2 Socket 3 connector
6. 4 x SATA 6Gb/s connectors
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x S/PDIF Out header
10. 1 x CPU cooler LED strip/RGB LED strip header
11. 1 x RGB LED strip header
12. 2 x addressable LED strip headers
13. 1 x USB 3.1 Gen 1 header
14. 2 x USB 2.0/1.1 headers
15. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
16. 1 x serial port header
17. 1 x Clear CMOS jumper

Cổng kết nối (Phía sau)

1. 1 x PS/2 keyboard/mouse port
2. 1 x HDMI port
3. 4 x USB 3.1 Gen 1 ports
4. 4 x USB 2.0/1.1 ports
5. 2 x SMA antenna connectors (1T1R)
6. 1 x RJ-45 port
7. 3 x audio jacks

LAN / Wireless

1. Realtek® GbE LAN chip (1 Gbps/100 Mbps)

1. WIFI 802.11a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
2. BLUETOOTH 5.0
3. Support for 11ac wireless standard

Kích cỡ

1. 1. Micro ATX Form Factor; 24.4cm x 21.5cm
