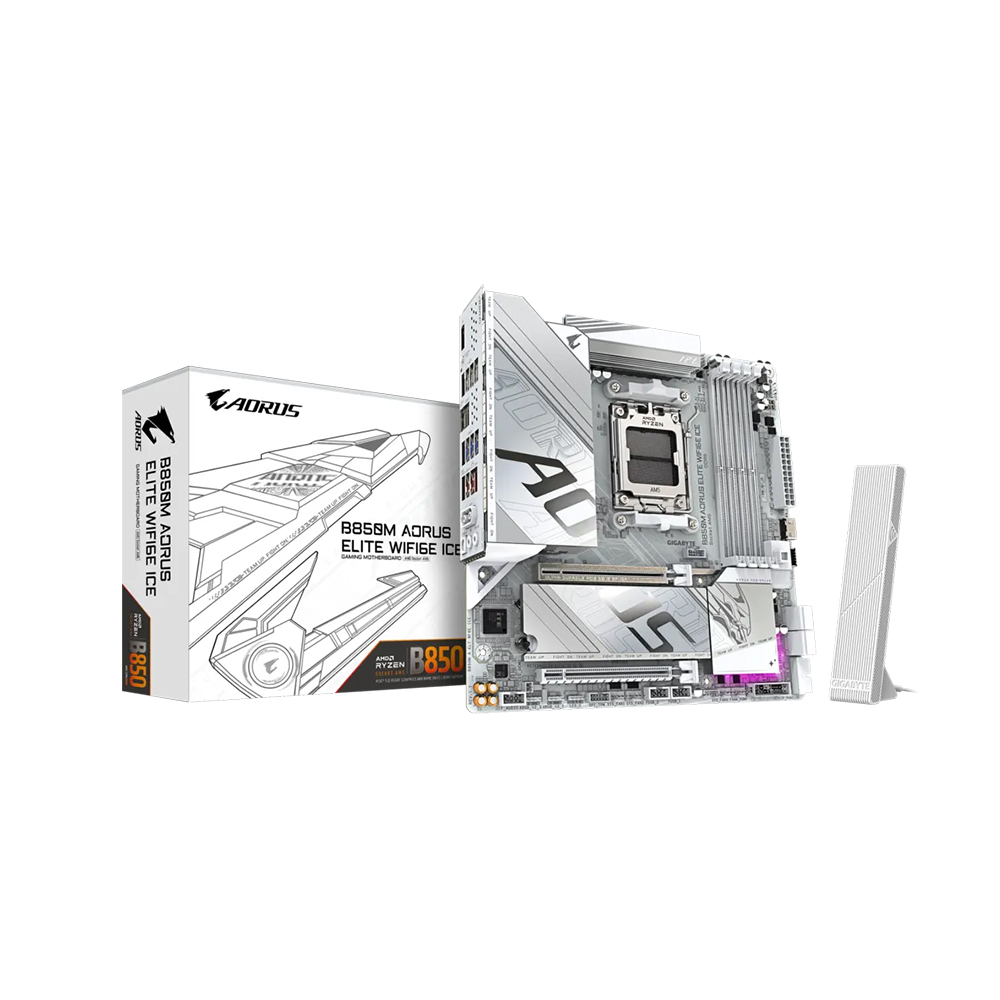

Mainboard Gigabyte B850M AORUS ELITE WIFI 6E ICE DDR5

Sản phẩm

Bo mạch chủ

Tên Hãng

ASUS

CPU hỗ trợ

AMD

Chipset

AMD B850

RAM hỗ trợ

Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Khe cắm mở rộng

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Ổ cứng hỗ trợ

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
 AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
 AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
 AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
 AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
 AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
 AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x HDMI port (Note)
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

Cổng kết nối (Back Panel)

1 x DisplayPort (Note)
1 x Q-Flash Plus button
4 x USB 2.0/1.1 ports
5 x USB 3.2 Gen 1 ports
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 2 support
1 x RJ-45 port
2 x antenna connectors (2T2R)
2 x audio jacks
1 x optical S/PDIF Out connector

LAN / Wireless

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Realtek® Wi-Fi 6E RTL8852CE
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11ax 160MHz wireless standard
(Actual data rate may vary depending on environment and equipment.)

Kích cỡ

Micro ATX Form Factor; 24.4cm x 24.4cm
