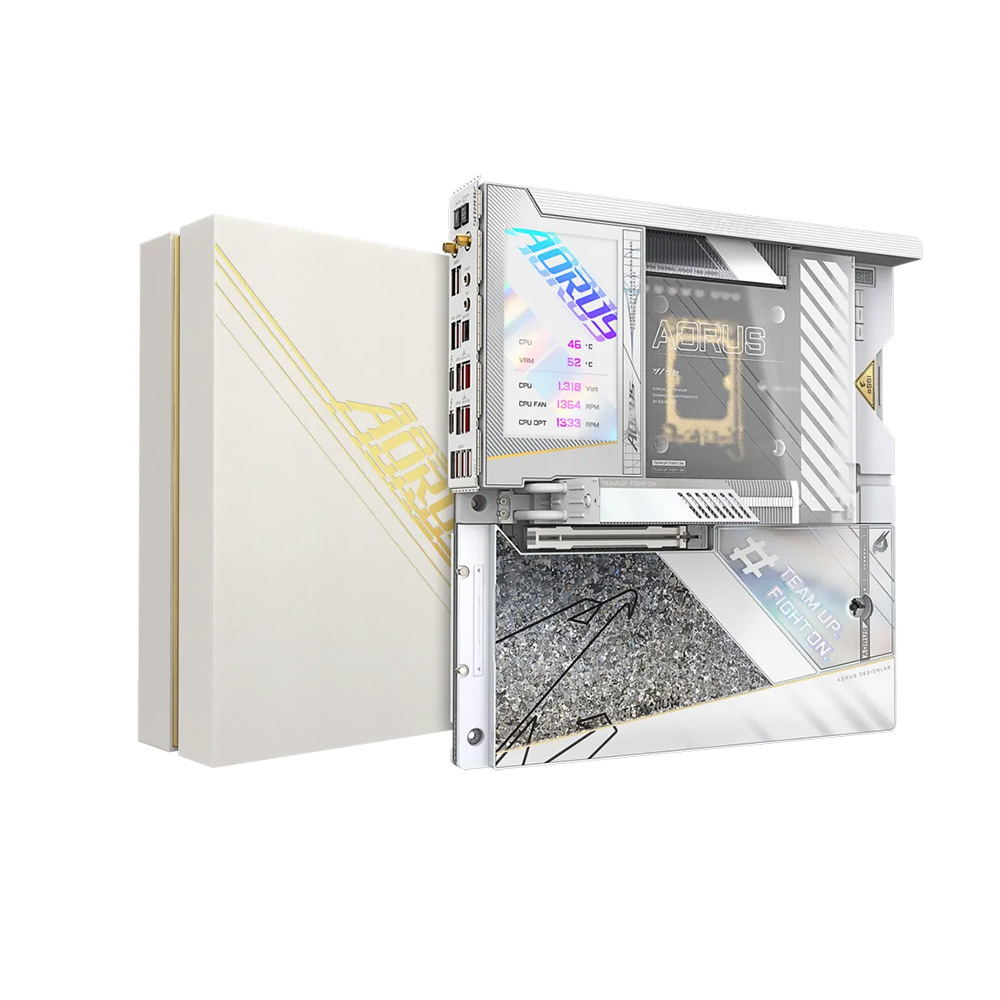

Mainboard GIGABYTE Z790 AORUS XTREME X ICE DDR5 (Wifi+Bluetooth)

Sản phẩm

Bo mạch chủ

Tên Hãng

Gigabyte

Model

Z790 AORUS XTREME X ICE

CPU hỗ trợ

Intel

Chipset

Z790

RAM hỗ trợ

1. Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

Khe cắm mở rộng

CPU:

1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
   * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.
   * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

Ổ cứng hỗ trợ

CPU:

1. 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)
2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
2. 1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
3. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Cổng kết nối (Internal)

1. 1 x 24-pin ATX main power connector
2. 2 x 8-pin ATX 12V power connectors
3. 1 x CPU fan header
4. 1 x CPU fan/water cooling pump header
5. 1 x system fan header
6. 1 x system fan extension cable header (can extend three system fan headers through one cable)
7. 1 x system fan/water cooling pump extension cable header (can extend three system fan/water cooling pump headers through one cable)
8. 1 x noise detection header
9. 1 x integrated extension cable header for addressable RGB Gen2 LED strips and RGB LED strips (can extend three addressable RGB Gen2 LED strip headers and three RGB LED strip headers through one cable)
10. 4 x SATA 6Gb/s connectors
11. 5 x M.2 Socket 3 connectors
12. 1 x front panel header
13. 2 x USB Type-C® headers, with USB 3.2 Gen 2x2 support
14. 2 x USB 3.2 Gen 1 headers
15. 1 x integrated extension cable header for system fan/water cooling pump and USB 2.0/1.1 headers (can extend one system fan/water cooling pump header and two USB 2.0/1.1 headers through one cable)
16. 2 x temperature sensor headers
17. 1 x power button
18. 1 x reset button
19. 1 x Clear CMOS button

Cổng kết nối (Back Panel)

1. 1 x Q-Flash Plus button
2. 1 x OC Ignition button
3. 2 x SMA antenna connectors (2T2R)
4. 2 x Thunderbolt™ 4 connectors (USB Type-C® ports, with USB 3.2 Gen 2 support)
5. 10 x USB 3.2 Gen 2 Type-A ports (red)
6. 2 x RJ-45 ports
7. 1 x optical S/PDIF Out connector
8. 2 x audio jacks
   * The mic in jack supports only mono microphone input

LAN / Wireless

1. Marvell® AQtion AQC107 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1)
2. Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN2)
3. Intel® Wi-Fi 7 BE200
   1. 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
   2. BLUETOOTH 5.3
   3. Support for 11be 320MHz wireless standard

Kích cỡ

1. E-ATX Form Factor; 30.5cm x 28.5cm
